Master Soft Steel Top Jaws 2.75" (70mm) Height for 8" Dia. Chucks with 1.5x60 deg Serrations

  • $ 4350


Master Standard Soft Top Jaws for 8" Chucks

  • Set of 3 Steel Jaws
  • 1.5mm x 60 deg. Standard Serrations
  • Groove Width: 14 mm (0.55 in)
  • S-3 Height: 70 mm ( 2.75 in)
  • Material: S45C Steel

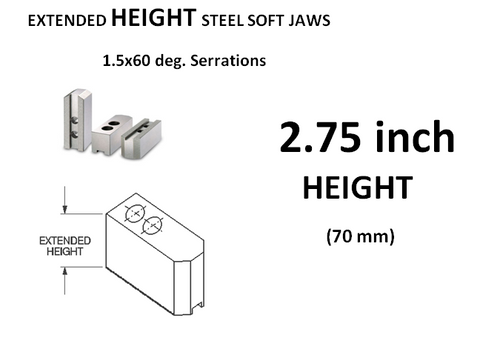

Dimensions :  See Illustration

  • S-1 : 95 mm (3.74 in)
  • S-2 : 95 mm (3.74 in)
  • S-3 : 70 mm (2.75 in)
  • S-4 : 14 mm (0.55 in)
  • S-5 : 5 mm (0.20 in)
  • S-6 : 22 mm (0.87 in)
  • S-7 : 25 mm (0.98 in)
  • S-8 : 46 mm (1.81 in)
  • S-9 : M12
  • Serration Pitch : 1.5 x 60
  • Weight : 2.5 kg (5.51 lbs)
