Master 8" (-208 Size) Power Chucks by AutoGrip - Direct Mount 'A' Tapered Spindle
Master 8" Power Chuck (208 size) by Auto-Grip
Direct replacement for the trademarked chucks:
Kitagawa B-208
SamChully HS-08
Chandox OP-208
Strong N-208
and other brands with similar dimensions and jaw serrations
NOTE: Chuck comes with A2-6 Spindle mounting adapter
and can be converted to a Standard plainback chuck by removing
this adapter
- Power Chucks for 'new' machines or replacements, dimensionally and operationally equal to current market standards
- 1.5mm x 60 deg Jaw Serrations Standard
- A-Type Spindle Mounting Adapter included
- One Set of Soft Jaws, T-Nuts, and Bolts Included with each new Chuck

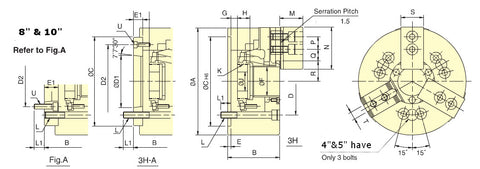

Specification / Dimensional Data
- Nominal Size : 8"
- Model : MG08A6
- Mount : A6
- A : 210 mm (8.27 in)
- F : 52 mm (2.05 in)
- B : 103 mm (4.06 in)
- K max Thread : M60x2
- Jaw Stroke : 3.7 mm (0.146 in)
- Max Grip : 85.8 KN (19289 lbs)
- Max D-Tube Pull : 34.3 KN (7711 lbs)
- Max RPM : 5000
- Mass : 23.6 kg (42 lb)
- T-Slot : 14 mm (0.551 in)
- DT Stroke : 16 mm (0.63 in)
- C : 170 mm (6.69 in)
- D : 133 mm (5.25 in)
- D1 : 106.38 mm (4.19 in)
- D2 : 150 mm (5.91 in)
- E : 5 mm (0.197 in)
- E1 : 17 mm (0.669 in)
- G Max : 31.5 mm (1.240 in)
- G Min : 15.5 mm (0.610 in)
- H : 20.5 mm (0.807 in)
- J : 30 mm (1.181 in)
- L-1 : 18 mm (0.71 in)
- M : 38 mm (1.50 in)
- N : 95 mm (3.74 in)
- P : 25 mm (0.98 in)
- Q Max : 29.8 mm (1.17 in)
- Q Min : 14.8 mm (0.58 in)
- R Max : 38.7 mm (1.524 in)
- R Min : 35 mm (1.378 in)
- S : 35 mm (1.378 in)
- U : 3-M6
- L : 6-M12
