ALUMINUM Set of Jaws for 5" Dia. CHUCKS w/ 1.5mm x 60 DEG. Serrations

  • $ 3788

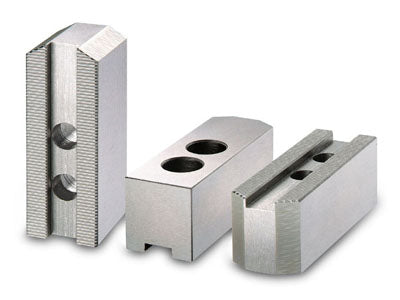

Master ALUMINUM Standard Soft Top Jaws

    • Set of 3  Jaws -  Soft Aluminum
    • 1.5mm x 60 deg. Standard serrations
    • Fits most 5 in. dia. chucks with 1.5x60 deg serrated base jaws
    • Groove Width: 10 mm  /  0.39 in
    • Screw size: M8 with 14 mm / .55 in hole spacing
    • Material: 6061 T6 Aluminum

Dimensions :  See Illustration

    • Length :  62 mm (2.44 in)
    • Width : 23 mm (0.91 in)
    • Height: 27 mm (1.06 in)
    • Groove Width : 10 mm (0.39 in)
    • Groove Depth : 4 mm (0.16 in)
    • Screw C'Bore Depth : 17 mm (0.67 in)
    • Screw Spacing : 14 mm (0.55 in)
    • Screw Hole to Jaw Tip : 38 mm (1.5 in)
    • Screw Size : M8
    • Serration Pitch : 1.5 x 60
    • Weight : 0.23 kg (0.51 lbs)
