Master Standard Soft Top Jaws 10" Chucks

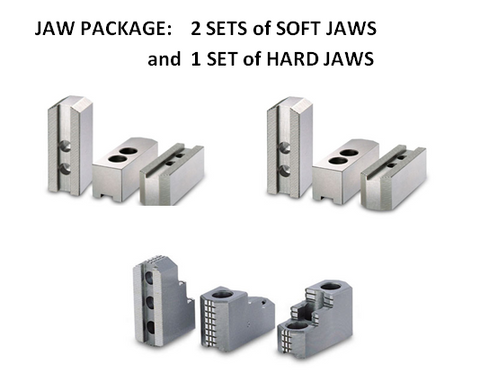

• 2 Sets of 3 Steel Soft Jaws
• 1.5mm x 60 deg. Standard serrations
• Fits most 10 in. or 250 mm dia. chucks with 1.5x60 deg serrated base jaws
• Groove Width: 16mm  /  .63 in.
• Screw size: M12 with 30 mm / 1.18 in. hole spacing
• Material: SC45

Dimensions :  See Illustration

• Length :  110 mm (4.33 in)
• Width : 40 mm (1.57 in)
• Height: 42 mm (1.65 in)
• Groove Width : 16 mm (0.63 in)
• Groove Depth : 5 mm (0.20 in)
• Screw C'Bore Depth : 27 mm (1.06 in)
• Screw Spacing : 30 mm (1.18 in)
• Screw Hole to Jaw Tip : 50 mm (1.97 in)
• Screw Size : M12
• Serration Pitch : 1.5 x 60
• Weight : 3.6 kg (7.92 lbs)

Master Two Stepped Hard Jaws

• Set of 3 Hardened Steel Jaws
• Two Stepped Version - as Fig 1 attached
• 1.5 mm x 60 Deg Standard Serrations
• Groove Width: 16 mm (0.63 in)
• Material: SNCM 21 Steel   Hardened to HRC 58-60

Dimensions : refer to Fig 1 Illustration

Nominal Chuck Size : 10 in
H-1 : 101 mm (3.98 in)
H-2 : 40 mm (1.57 in)
H-3 : 54 mm (2.13 in)
H-4 : 16 mm (0.63 in)
H-5 : 5 mm (0.20 in)
H-6 : 43 mm (1.69 in)
H-7 : 30 mm (1.18 in)
H-8 : 17 mm (0.67 in)
H-9 : 13 mm (0.51 in)
H-10 : M12
Serration Pitch : 1.5 x 60
Weight : 2.85 kg (6.28 lbs)
Ref Drawing : Fig. 1
