Master Stepped Hard Top Jaws 12" - MHS-12-18 1.5x60 deg serrations & 0.71 in groove

  • $ 34400
  • Save $ 6

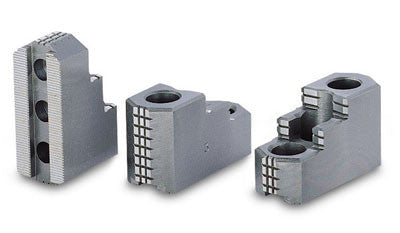

Master Stepped Hard Top Jaws 12"

  • Stepped - Single Step
  • 1.5mm x 60° Standard serrations
  • Material: SNCM 21 Steel   Hardened to HRC 58-60

Dimensions : refer to Fig 2 Illustration attached

Nominal Chuck Size : 12 in
H-1 : 103 mm (4.06 in)
H-2 : 50 mm (1.97 in)
H-3 : 52 mm (2.05 in)
H-4 : 18 mm (0.71 in) Groove Width
H-5 : 5 mm (0.20 in)
H-6 : 62 mm (2.44 in)
H-7 : 30 mm (1.18 in)
H-8 : 41 mm (1.61 in)
H-9 : 17 mm (0.67 in)
H-10 : M14
Serration Pitch : 1.5 x 60
Weight : 3.90 kg (8.60 lbs)
Ref Drawing : Fig. 2
