Master 10" (210 Size) Power Chucks by AutoGrip - for 'A' Type Tapered Spindle Nose
Master 10" Power Chuck (210 size) by Auto-Grip
Direct replacement for the trademarked chucks:
Kitagawa B-210
Chandox OP-210
Strong N-210
and other brands with similar dimensions and jaw serrations
NOTE: Chuck comes with A2-8 Spindle mounting adapter
and can be converted to a Standard plainback chuck by removing
adapter mounting bolts
- Power Chucks for 'new' machines or replacements, dimensionally and operationally equal to current market standards
- 1.5mm x 60 deg Jaw Serrations Standard
- A-Type Spindle Mounting Adapter included
- One Set of Soft Jaws, T-Nuts, and Bolts included with each new chuck

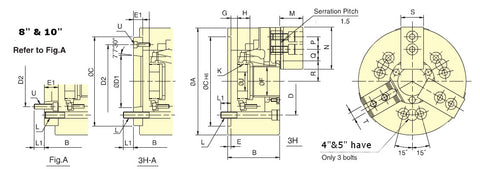

Specification / Dimensions (see Illustration) :
- Nominal Size : 10"
- Model : MG10A8
- Mount : A8
- A : 254 mm (10 in)
- F : 75 mm (2.95 in)
- B : 113 mm (4.45 in)
- K max Thread : M85x2
- Jaw Stroke : 4.4 mm (0.173 in)
- Max Grip : 110.7 KN (24886 lbs)
- Max D-Tube Pull : 42.6 KN (9577 lbs)
- Max RPM : 4200
- Mass : 40 kg (88.1 lb)
- T-Slot : 16 mm (0.630 in)
- DT Stroke : 19 mm (0.75 in)
- C : 220 mm (8.66 in)
- D : 171 mm (6.75 in)
- D1 : 139.72 mm (5.50 in)
- D2 : 190 mm (7.48 in)
- E : 5 mm (0.197 in)
- E1 : 18 mm (0.709 in)
- G Max : 26.5 mm (1.043 in)
- G Min : 7.5 mm (0.295 in)
- H : 25 mm (0.984 in)
- J : 45 mm (1.772 in)
- L-1 : 24 mm (0.94 in)
- M : 43 mm (1.69 in)
- N : 110 mm (4.33 in)
- P : 30 mm (1.18 in)
- Q Max : 33.8 mm (1.33 in)
- Q Min : 14.3 mm (0.56 in)
- R Max : 51 mm (2.008 in)
- R Min : 46.6 mm (1.835 in)
- S : 40 mm (1.575 in)
- U : 3-M8
- L : 6-M16
